Product Details:
Category：High voltage Fuse
Name：Current Limit Fuse, Fuse Link, Fuse Tube, Fuse wire
Model：RN series
Packing：Plastic bag & Carton or as Requested
Delivery & Payment Terms:
Shipping time：Usually 21 days after the ordered confirmed
MOQ：10 PCS
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Specification
| Model | Rated voltage (kV) | Rated breaking current (kA) | Rated current (A) | Fuse link size (mm) | Fuse link weight (KG) | Base weight (KG) |
| RN1-6 | 6 | 20 | 2,3,5,7.5,10,15,20,25 | 54×310 | 1.1 | 3.9 |
| RN1-6 | 6 | 20 | 30,40,50,60,75 | 70×360 | 2.3 | 3.9 |
| RN1-6 | 6 | 20 | 100,150,200 | 2 pipes | 4.6 | 3.9 |
| RN1-10 | 10 | 12 | 2,3,5,7.5,10,15,20,25 | 54×410 | 1.5 | 4.1 |
| RN1-10 | 10 | 12 | 30,40,50 | 70×460 | 3.0 | 4.1 |
| RN1-10 | 10 | 12 | 75,100,150 | 2 pipes | 6.0 | 4.1 |
| RN1-35 | 35 | 3.5 | 2,3,5,7.5 | 54×610 | 2.2 | 16.6 |
| RN1-35 | 35 | 3.5 | 10,15 | 70×660 | 4.2 | 16.6 |

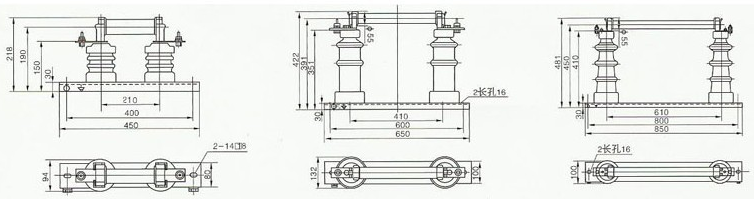

Outline dimension
