Product Details:
Category：Surge Arrester, Lightning Arrester

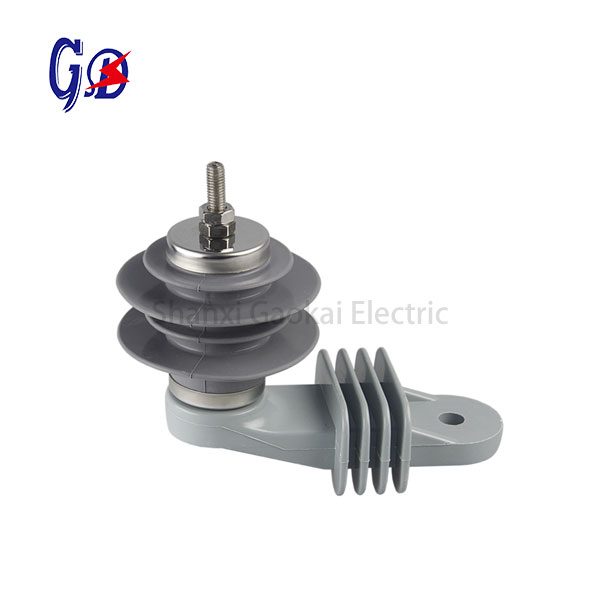

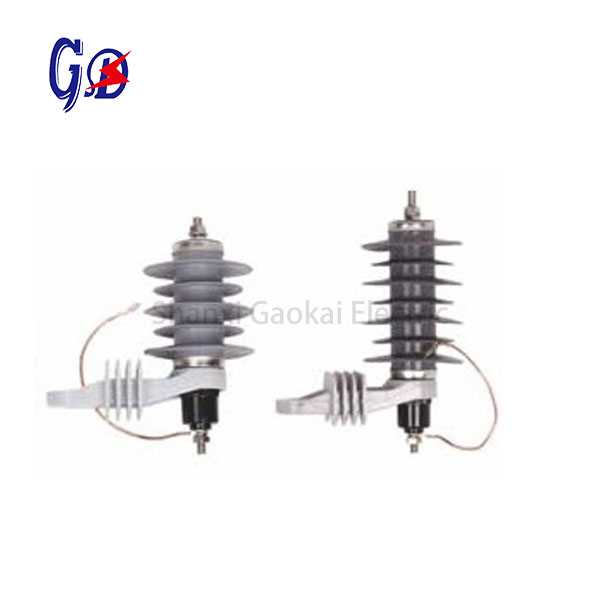

Name：6kVPolymer Housing Arrester, Metal Oxide Arrester
Model：YH5W-6, YH10W-6
Packing：Foam & Carton or as requested
Color：Grey, Red, White or as customized
Delivery & Payment Terms:
Shipping time：Usually 21 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Environment Conditions
– Ambient temperature: -40°C ~+40°C
– Altitude : not exceed 2000m (the altiplano area should be indicated when order)
– Earthquake intensity: not more than 8 degrees;
– Maximum wind velocity : lower than 35m/s;
– Rated frequency : 48HZ ～62HZ
– Power frequency voltage should be less than continuous-running voltage;
– The clear indication should be given for the application of contamination area.
| Model | Rated voltage
MOA (kV) |
Continuous Operating Voltage MCOV(kV) | Nominal Discharge Current (kA) | 1mA D.C reference voltage (kV) | Max. Residual Voltage under | 2mS
Square wave current impulse withstand (A) |
4/10mS
High current impulse withstand (kA) |
||
| 1/4μS Steep current impulse (kV) | 8/20μS Lightning current impulse (kV) | 30/60μS Switching current impulse
(kV) |
|||||||
| YH5W-6 | 6 | 5.1 | 5 | 11 | 22.6 | 18 | 16.8 | 150 | 65 |
| YH10W-6 | 6 | 5.1 | 10 | 10.8 | 19.5 | 17.7 | 14.1 | 250 | 100 |
Note: We can also provide a customized solution for the arresters with different creepage distance and a wide range of connectors & accessories according to supplied drawings and parameters.
Tag: Polymer housing surge arrester, Metal Oxide lightning arrester, Composite arrester
Outline Dimension
