Product Details:
Category：High voltage Fuse

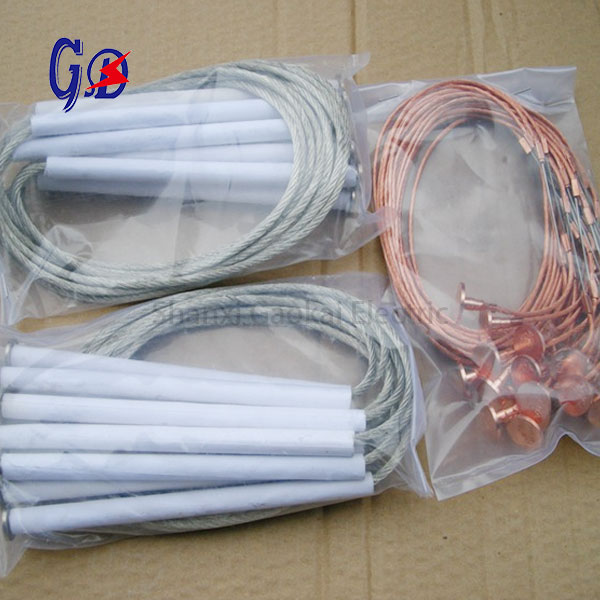

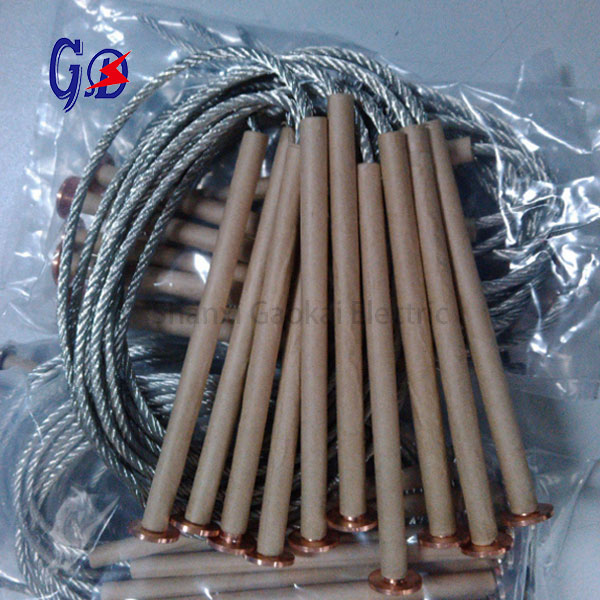

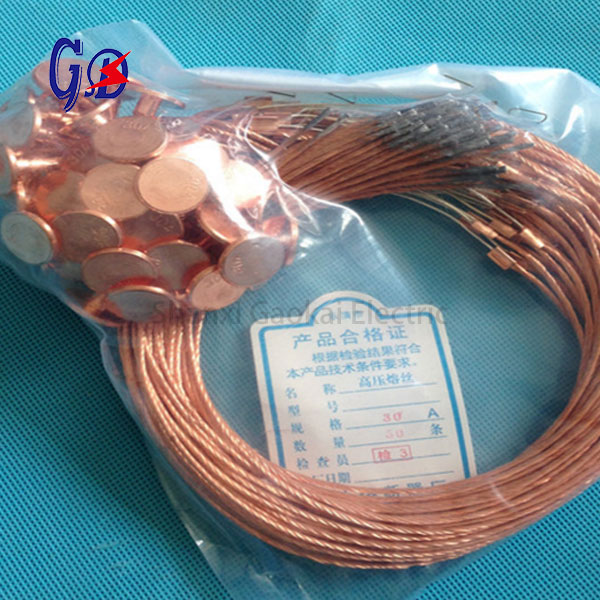

Name：Fuse wire, Fuse element
Model：FW
Packing：Plastic bag & Carton or as requested
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF
Specification
| Rated current (A) | Dimensions (mm) | Quantity/carton | ||||
| A | B | C | D | F | ||
| 1 to 40 | 12.5±0.2 | 19.0±0.3 | Note 1 | 2.0 | 6.5 | 500 |
| 50 to 100 | 12.5±0.2 | 19.0±0.3 | 5.0 | 8.0 | 500 | |
| 120 to 200 | 19.0±0.3 | unsuitable | 7.0 | 12.0 | 250 | |
| Note 1: Lengths of the Expulsion Fuse Links shall be 585mm and 787mm for 11KV and 33KV respectively. | ||||||
FUSE LINK, TYPE K, COMPLETE WITH FIXED OR REMOVABLE BUTTON HEAD

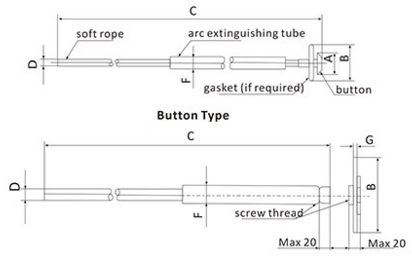

Outline dimension
