Product Details:
Category：Surge Arrester, Lightning Arrester

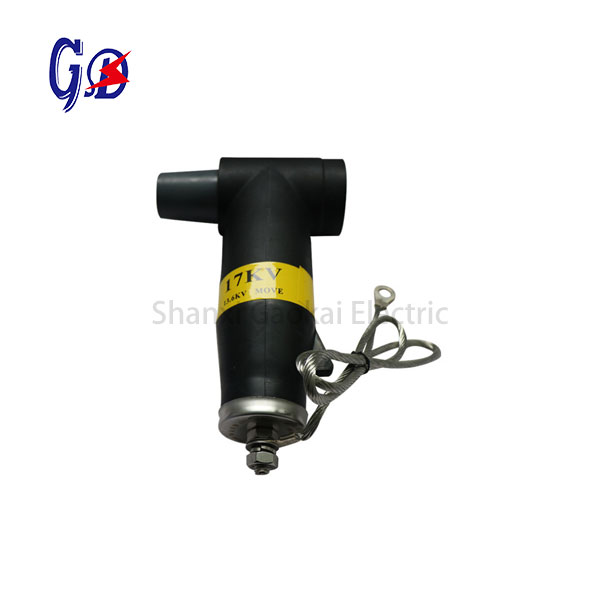

Name：Elbow Arrester, Plugged Surge Arrester
Model：GDTBLQ-17/50
Packing：Carton or as requested
Delivery & Payment Terms:
Shipping time： Usually 25 days after the ordered confirmed
Payment：T/T, L/C, Western Union or Paypal
Trade term：FOB China port, or CIF

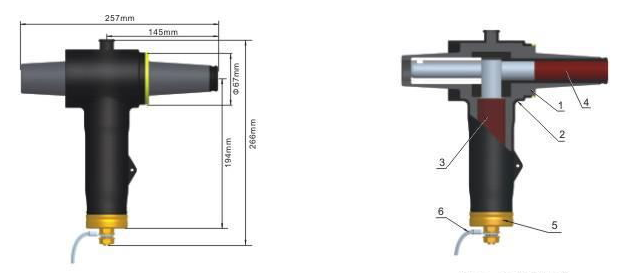

Structure
1. Insulation layer: Made of good quality with precut EPDM insulation rubber
2. Outer Semi-conductive layer: Precut EPDM rubber conform to IEEE592
3. Arrester core: Zinc Oxide resistor disc
4. arc extinguish chamber: Ensure the equipment safe operation
5. Copper bottom cover: To combine tightly outer conducting layer, waterproof, earth contact
6. The ground wire: At the arrester bottom, to guide the lightning impulse voltage to earth.
Specification
| Description | Model | Rated voltage (kV) | Lightning impulse withstand voltage (kV) |
| Surge Arrester Insert | GDTBLQ | 17 | 50 |

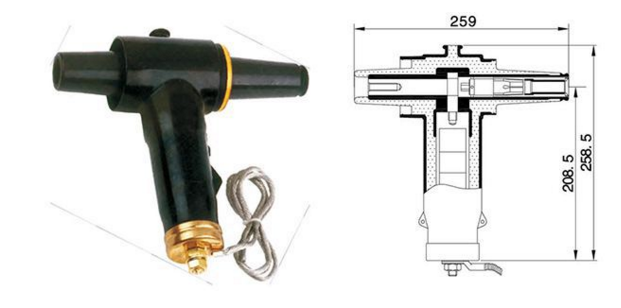

Dimension & Structure
