Product Details:
Category：Instrument Transformer

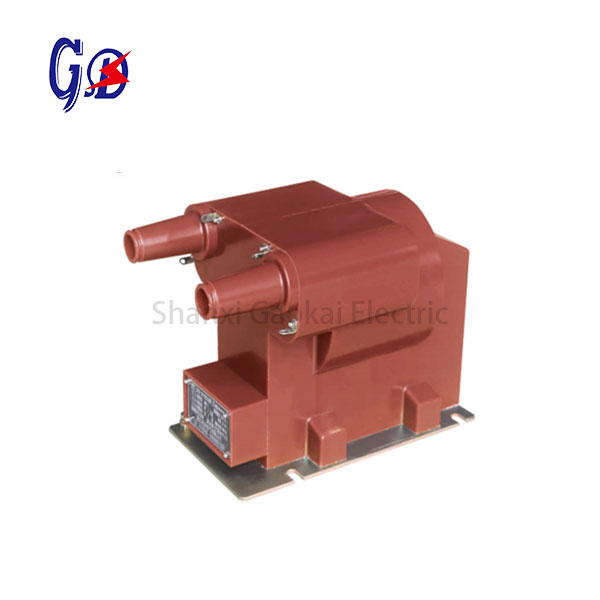

Name：12kV C-GIS Voltage Transformer
Model：JDZ16-6R,10R Brown or Red
Brand：OEM or our brand GK
Coil Structure：Toroidal
Material：Epoxy Resin Casting, Cooper
Delivery & Payment Terms:
Shipping time：Usually 25 days after the ordered confirmed
Payment：T/T, L/C, D/P, Western Union or Paypal
Trade term：FOB China port, or CIF
Technical Data
– Power factor: COSФ=0.8 (lagging)
– Rated frequency: 50/60Hz
– Ambient temperature: -5°C ~+40°C
– Altitude : ≤1000m
| Model | Rated voltage Ratio (kA) | Accuracy classes and
rated output level(VA) |
Thermal limit output (VA) | Rated insulation level (KV) | ||||||
| 0.2 | 0.5 | 1 | 3 | 0.2/0.2 0.2/0.5 | 0.5/0.5 | |||||
| JDZ16-6R | 6/0.1 | 30 | 80 | 150 | 240 | 600 | 7.2/32/60 | |||
| JDZ16-10R | 10/0.1 | 12/42/75 | ||||||||
| 10/0.1/0.1 | 25/25 | 60/60 | ||||||||
| 10/0.11/0.22 | 100 | 30 | 80 | 150 | 240 | 500 | ||||
| 220 | 50 | 100 | 150 | 300 | 800 | |||||
Note: We can also manufacture the transformers with other specifications as the detailed request.

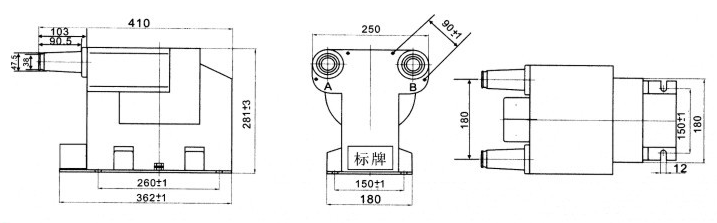

Outline Dimension
Product Inquiry
